Arcediano (Mexico)

Pumped Storage Plant

Place:

Guadalajara - Mexico

Customer:

Coordinacion de Ingenieria de Proyectos S.C (Cipro)

Year:

2006

Project Description:

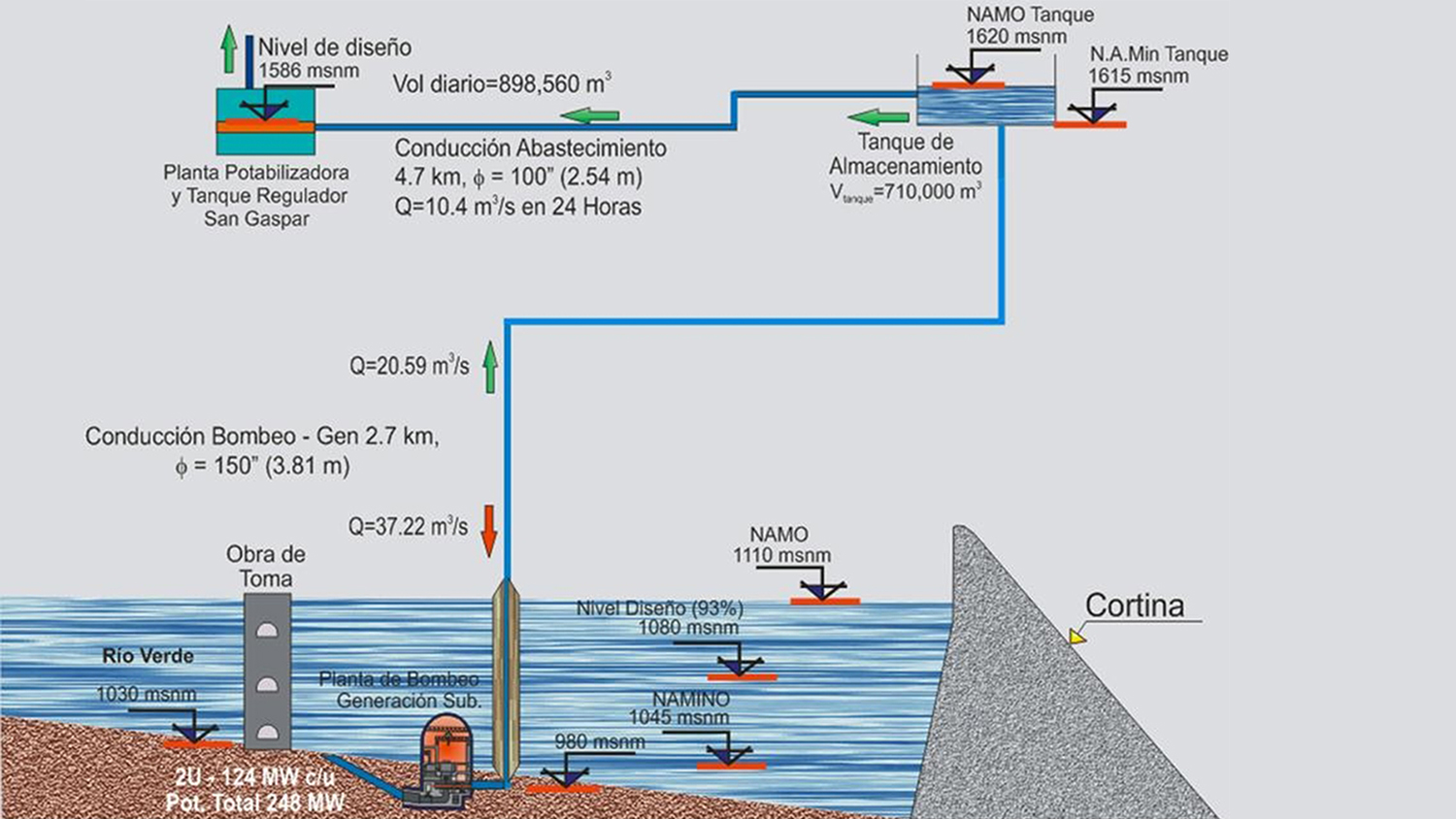

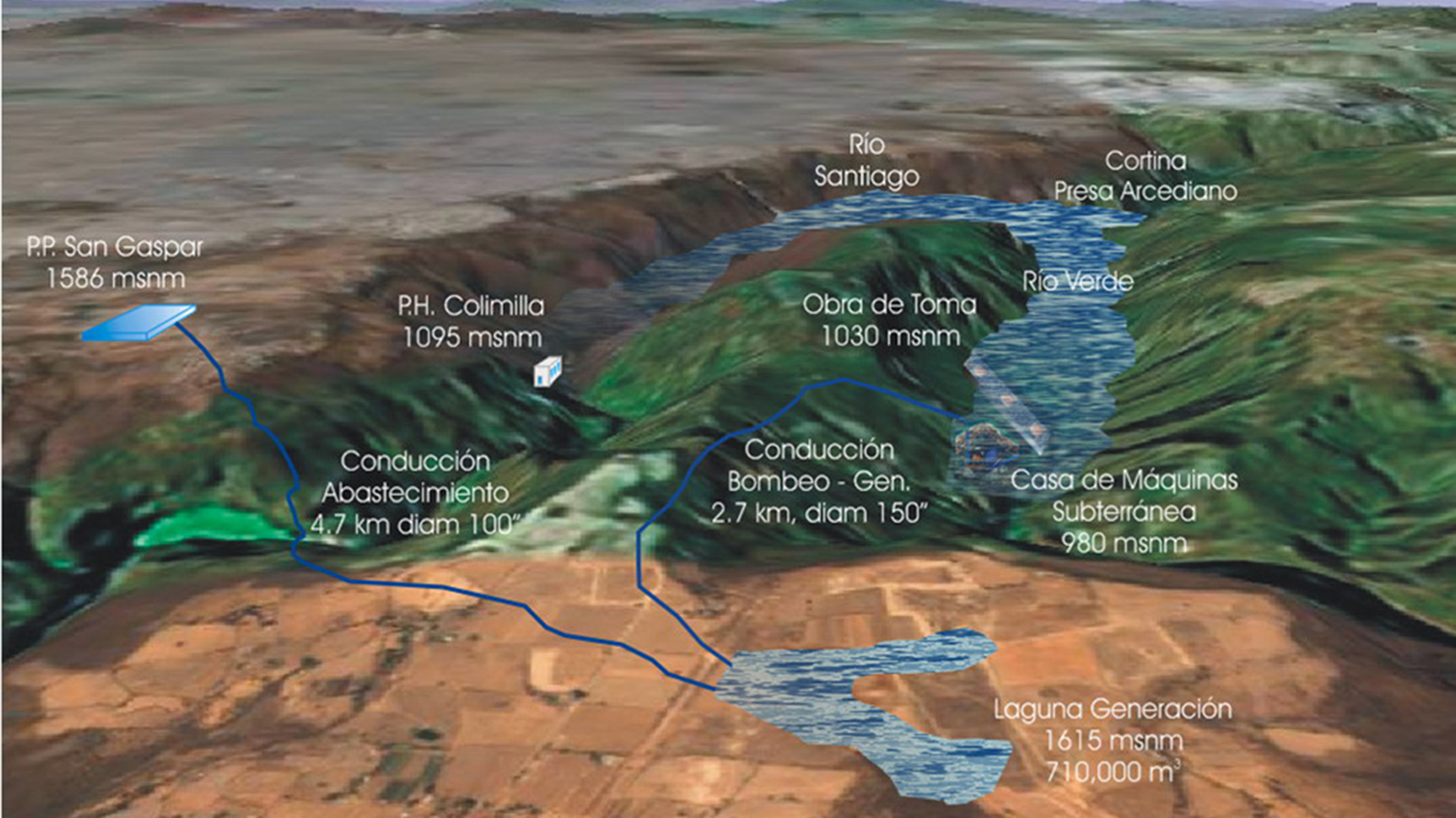

Pumped storage plant project (240 MW) envisaged on the shores of Arcediano lake

Main Features:
  • Underground power house (No. 2 Francis turbines, IP = 240 MW)
  • Pumping plant (P = 296 MVA)
  • Surge shaft (H = 30 m, D = 10 m)
  • Penstock (L = 680 m, D = 2.8 m)
  • Penstock shaft (L = 300 m, D = 2.8 m)
  • Access tunnel to underground power house (L = 1'415 m)
Engineering Service:
  • Basic design (in collaboration with Cipro)
  • Technical specifications of electromechanical and hydromechanical works
  • Hydraulic studies
