Kalivac (Albania)

Hydroelectric Power Plant

Place:

Kalivac - Albania

Customer:

ENEL POWER S.p.A.

Year:

2000 - 2001

Project Description:

Kalivac Hydropower Plant has 108 MW of installed power.

Main Features:
  • Reservoir (V = 350 Mm³)
  • River Diversion (Q = 2'500 m³/s)
  • Steel sheet pile cellular cofferdam
  • Concrete Gravity Dam (H = 80 m, L = 375 m, V = 540'000 m³)
  • Spillway (N° 15 gates 5.5x12.5 m, Ski-jump type, Q = 4'500 m³/s)
  • No. 2 Outlet (Q = 540 m³/s)
  • No. 2 Intake (Q = 285 m³/s)
  • Outdoor Power House (No. 2 Kaplan turbines + No. 1 Francis turbine, IP = 107.4 MW)
  • No. 2 Transformers (Rated voltage = 150 / 10 kV, Rated power = 63 MVA)
Engineering Service:

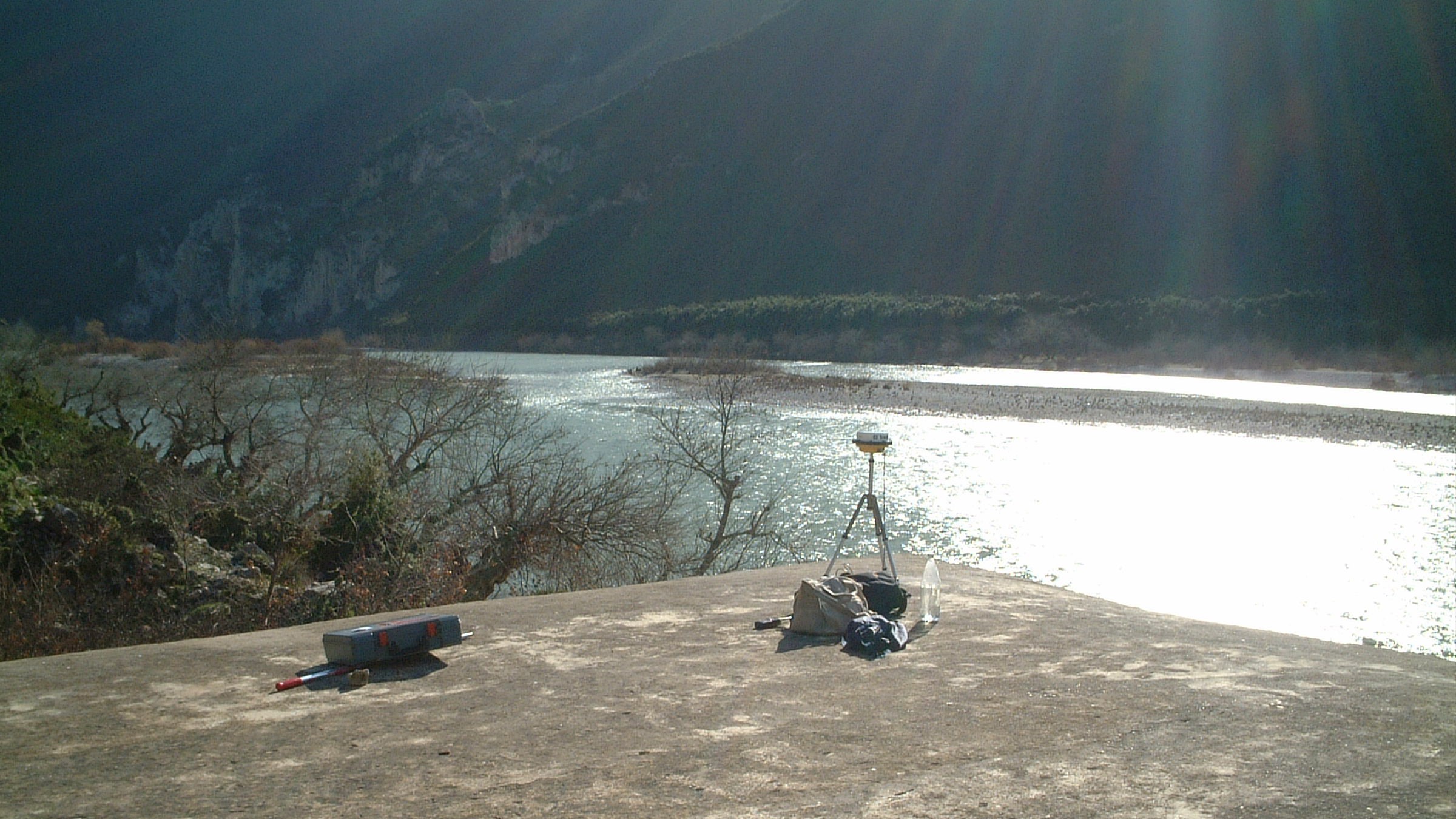

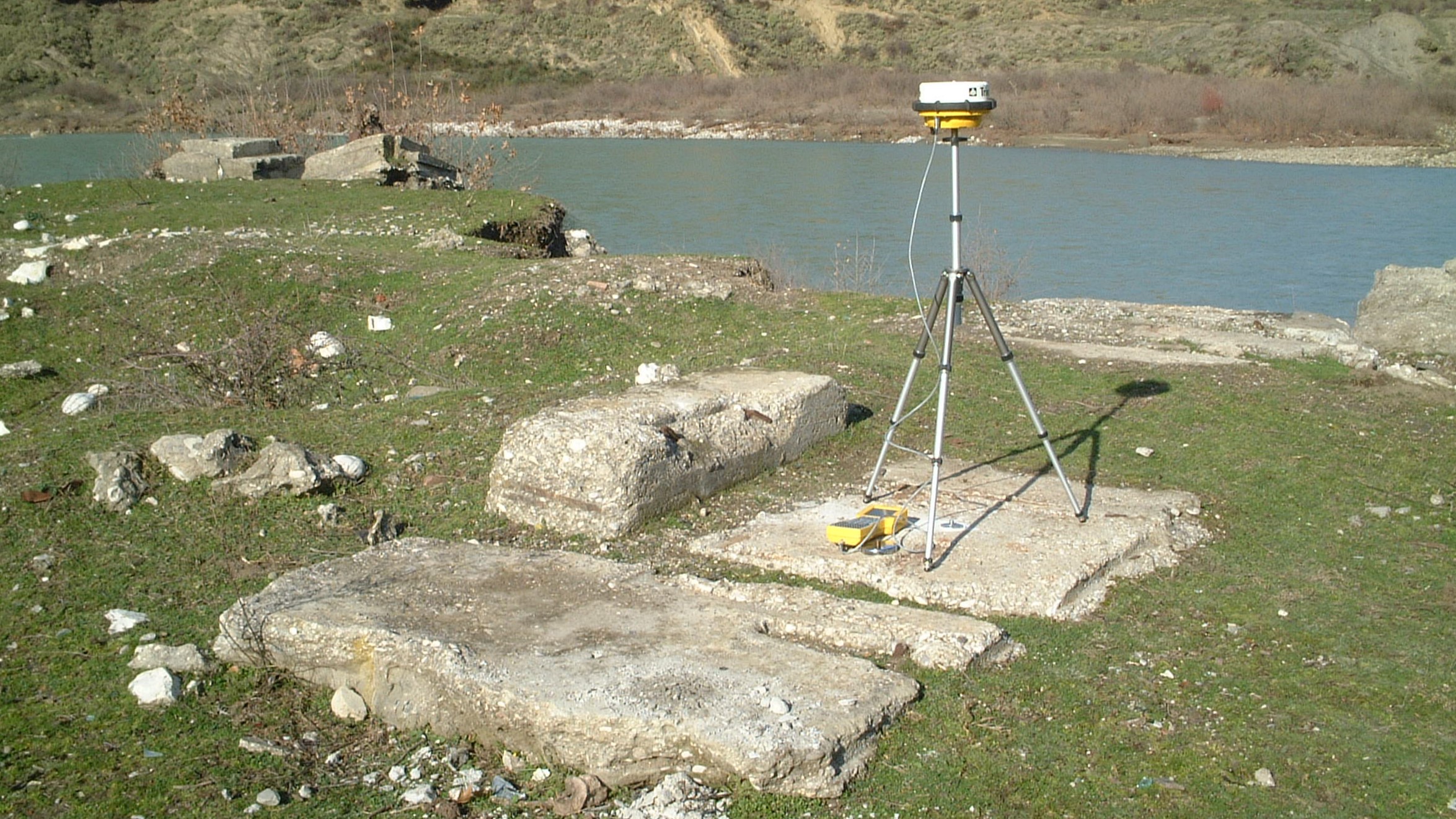

  • Geotechnical investigations, Surveys
  • Revision of preliminary design
  • Final design and tender documents (civil works)
  • Financial analysis
