Simbirizzi Hydropower (Italy)
Engineering services for hydropower plant
-
![Hydropower plant cascade - hydroelectric power plants cascade design - Studio Pietrangeli hydropower plant cascade firm company]()
Simbirizzi Hydropower (Italy)
Engineering services for hydropower plant
Place
Italy
Client
Ente Autonoma del Flumendosa (EAF)
Year
2003 -2008
Description for Simbirizzi Hydropower (Italy)
Simbirizzi (Settimo S. Pietro) is a small hydroelectric plant to supply the water pipeline network of southern Sardinia.
Main Features

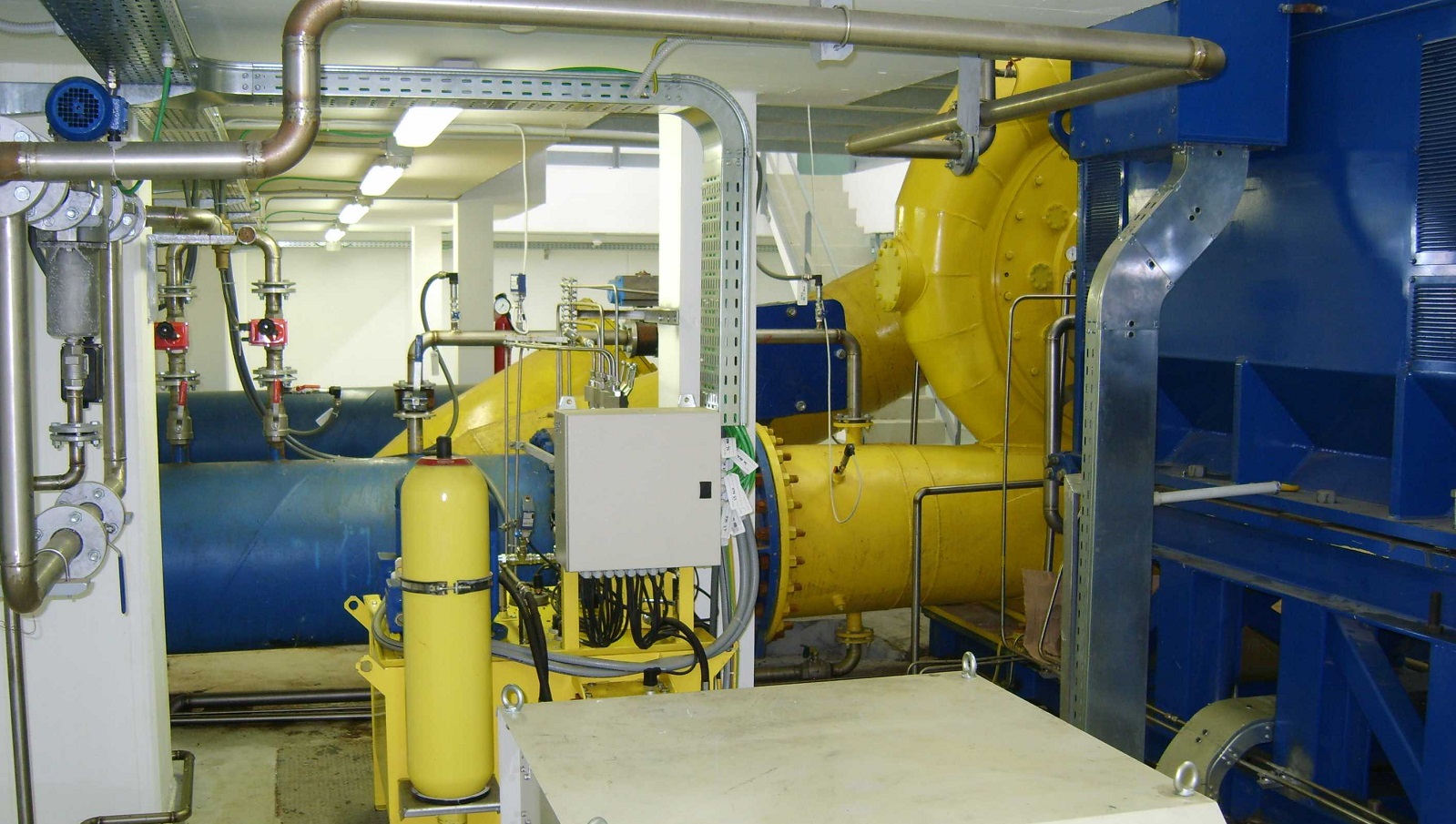

- Open-air Power House ( external dimensions 18 x 10 x h7 m )
- Electromechanical Works ( No.1 Francis Turbine, IP = 1'300 kW, Q = 2 m3/s, Head = 75 m, E = 6.5 GWh/y )
- Three-Phase Synchronous Alternator ( 6 kV/1,700 kVA )
Engineering Services
- Investigations
- Preliminary design
- Final design of civil, hydro-mechanical and electromechanical works
- Supervision of works
