Studio Pietrangeli

Dorjilung, Buthan

Hydropower Projects

The planned hpp develops the hydropower potential of the river just upstream the reservoir of the existing Kurichhu hydropower plant

Dorjilung, Buthan

DORJILUNG
Hydropower Project

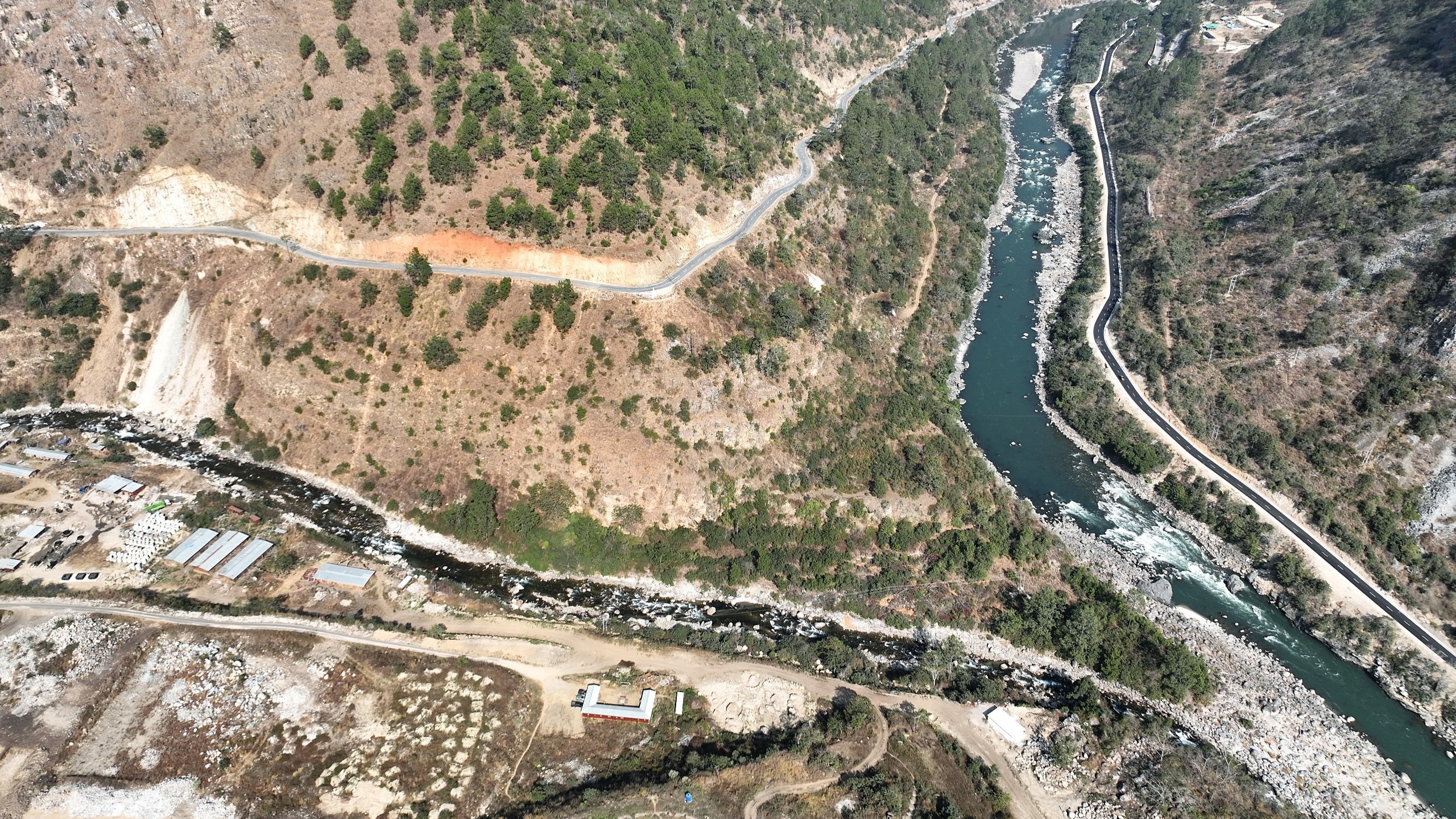

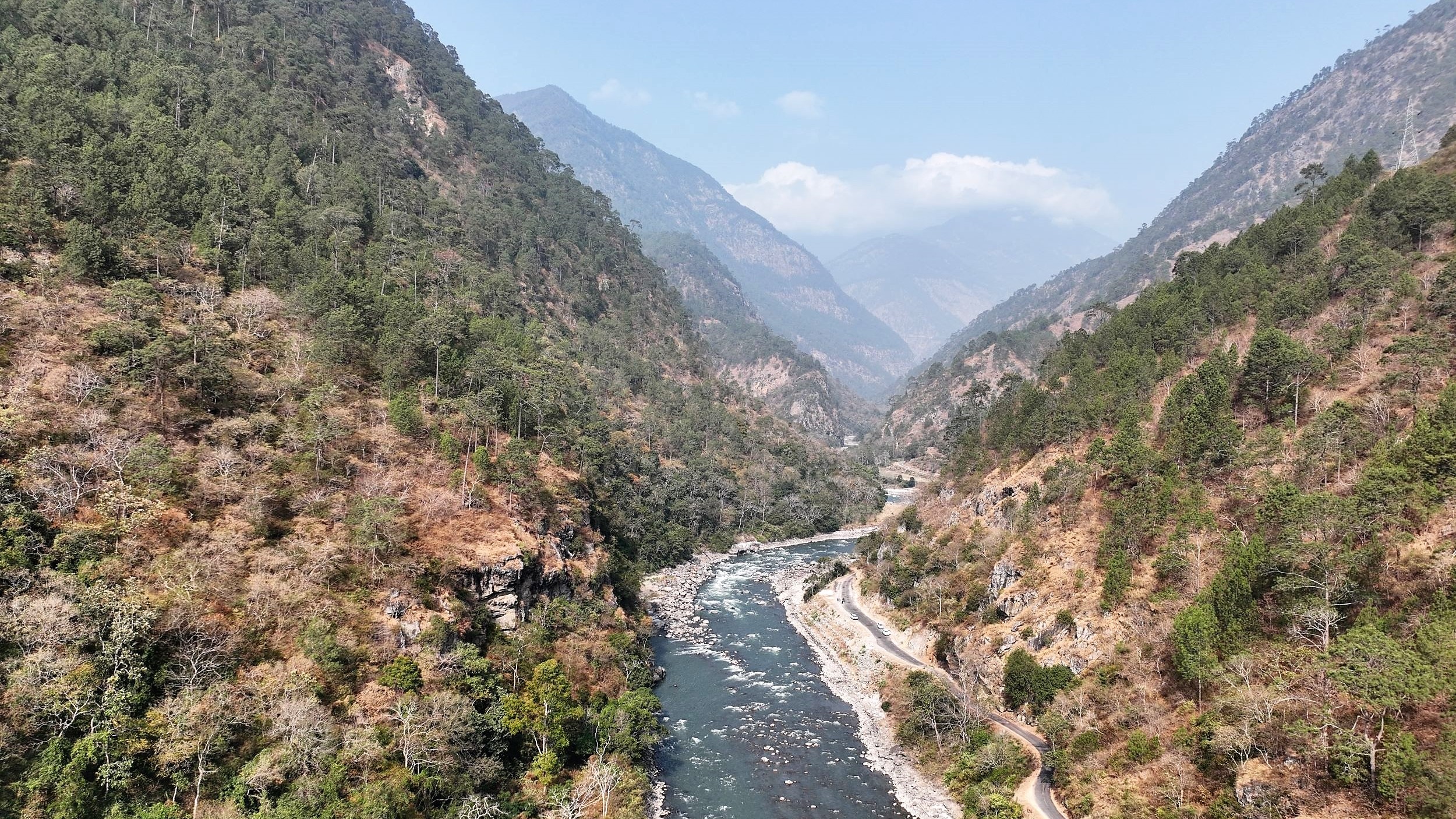

Dorjilung hydropower is located in the Himalayas on the Kurichhu river, about 450 km east of Thimpu.

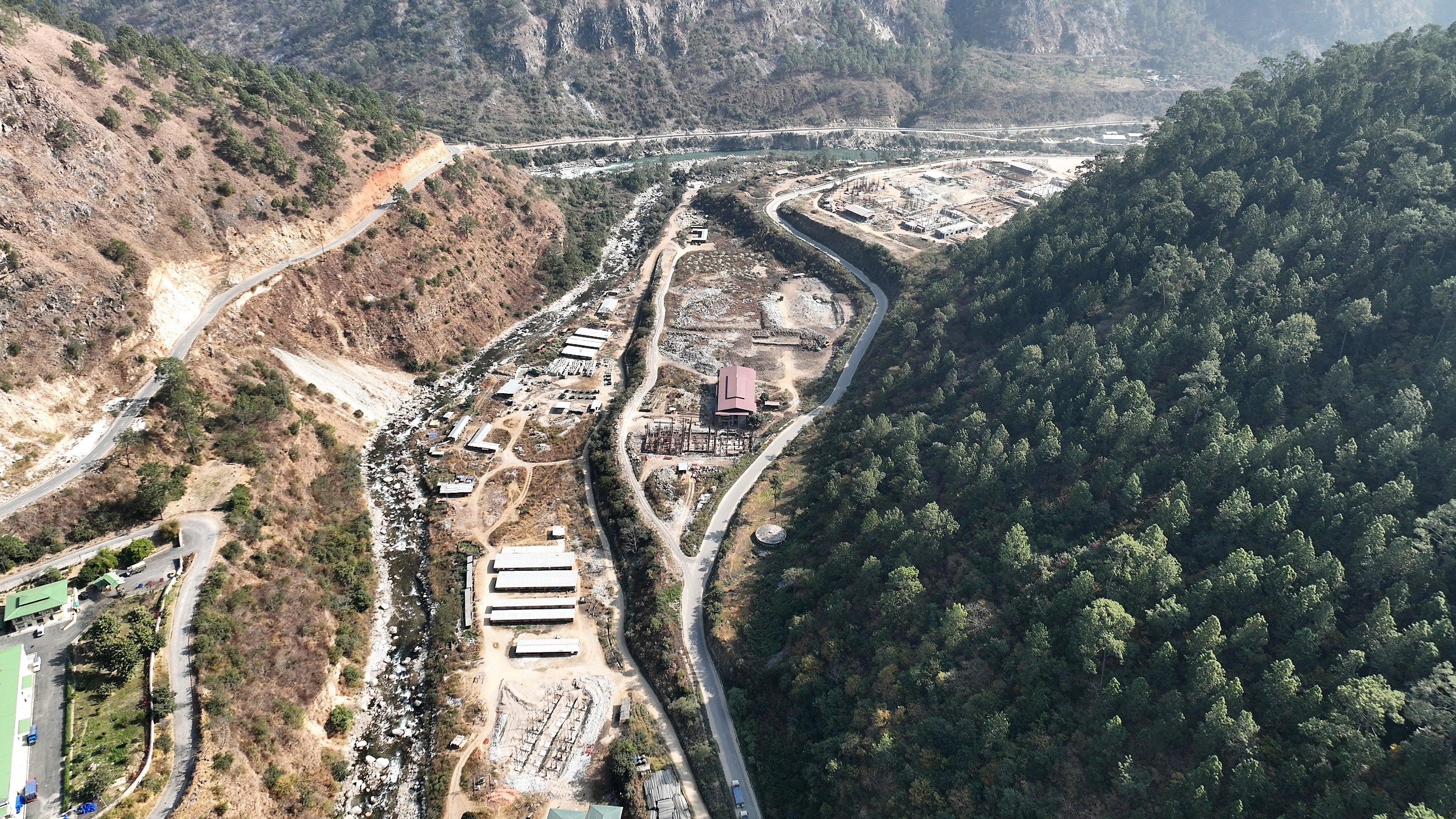

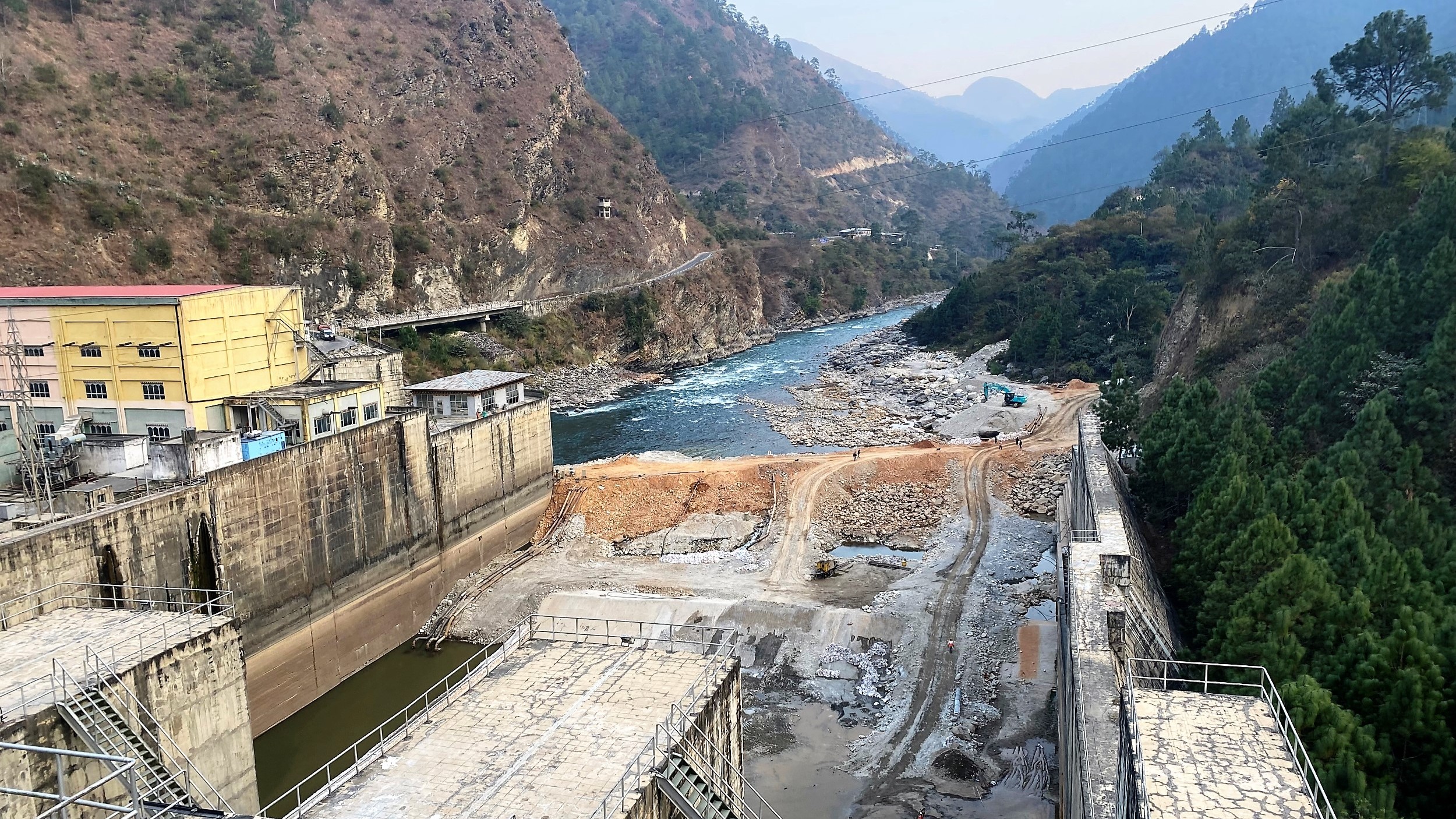

The planned HPP (IP = 1125 MW) develops the hydropower potential of the river (DH = 306 m, Q = 287 m3/s) located just upstream the reservoir of the existing Kurichhu hydropower plant (IP = 60 MW).

Dorjilung, Buthan

PLACE



Druk Green Power Corporation Limited

CLIENT

2022 – 2024

YEAR

Main Features

  • Reservoir (V = 44.17 Mm3)
  • Dam (RCC/Concrete gravity type, H = 139.5 m, L = 241 m)
  • Spillway (Qd = 16225 m3/s, No. 6 gates, w = 9 m, h = 15.10 m)
  • Power waterway system
    – Headrace tunnel (L = 15 km, D = 11 m)
    – Surge Shafts (D = 26 m, H =135 m)
    – Pressure shafts (No. 3, D = 5.5 m, H =330 m)
  • Powerhouse (underground, Dim. 210x23x60.5 m, No. 6 Francis turb, Hmax = 306 m, IP = 1125 MW)
  • HV Substation and Transmission Line connection to the grid (approx. L = 85km, V = 400kV)

Additional Informations

Dorjilung, Buthan

Dorjilung Hydropower Project

Engineering
Services

Review of the existing preliminary design and studies

Basic studies

Detailed project design, in compliance with World Bank standards and Bhutanese guidelines, (activities carried out by SP in collaboration with Druk Green Power Corporation)
